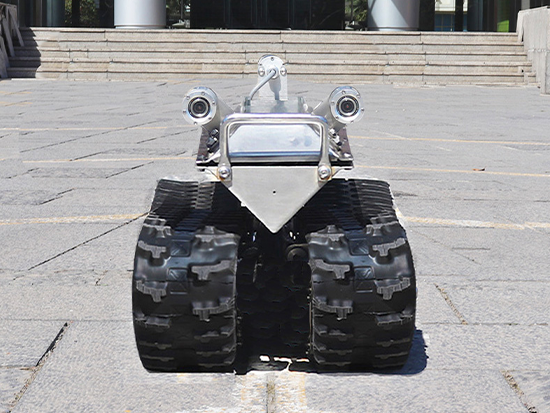

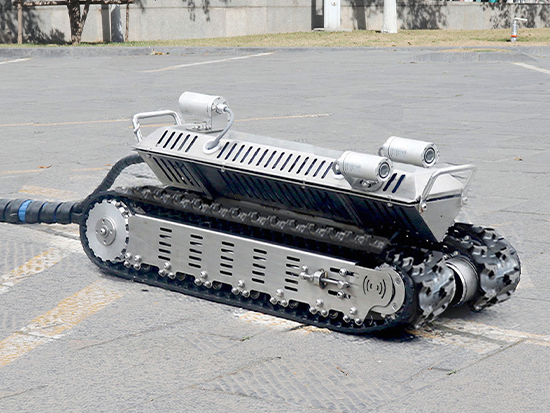

Advantages:
1. Small chassis fits pipes from 565mm and enters urban tunnels via manholes.
2. Powerful 2,000W drive motor.
3. Tracks adjust automatically for round pipes, providing strong grip and drag for square and round pipes.
4. High-pressure drive with cable control up to 600 meters and an automatic cable winder for easy cable retrieval and deployment.
5. Multiple power system options: Battery (200AH), generator, or 380V AC power.
6. IP68 waterproof chassis and oil-sealed motors for underwater use up to 30m.
7. Optional: One or four-channel remote control.
8. Optional: IP68 underwater camera for easy operation.
9. Front-mounted tools like a mud pump, reamer, and water gun for cleaning pipes.
| Name |
Data |
Name |
Data |
| Robot dimension |
1165*420*430mm |
Cable winder size |
1200*950*1150mm |
| Load weight |
150kg |
Travel speed |
5km/h |
| Motor voltage |
DC48V |
Cable length |
50m (can be customized to 600m) |
| Maximum operating power |
2000w |
Maximum climbing grade |
30° |
| Waterproof grade |
IP68 (50m， 150m, can be customized for 300m depth underwater) |
Maximum track span |
900mm |
| Robot self-weight |
140Kg (approximate) |
Cable winder self-weight |
190Kg (approximate) |
| Battery compartment size |
741*427*148mm |
Track grounding length |
850mm |
| Maximum span |
280mm |
Obstacle crossing ability |
150mm |
