  • P3 Pipeline Robot Chassis

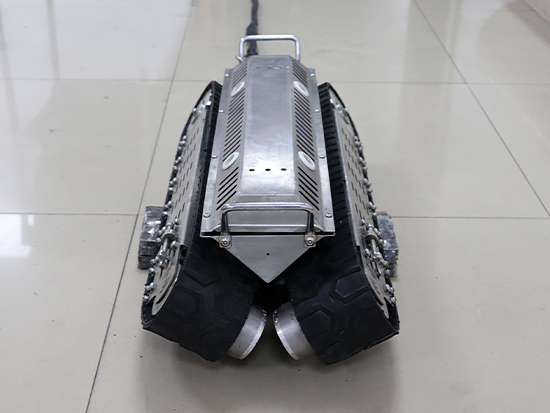

P3 Pipeline Robot Chassis

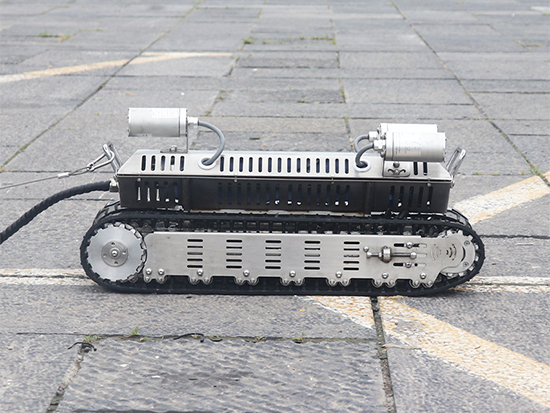

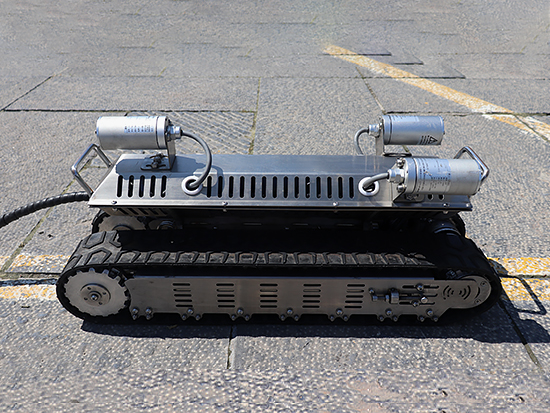

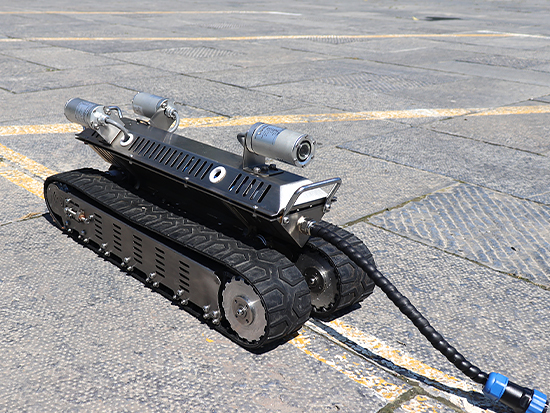

P3 pipeline robot chassis with a small size for operations in small horizontal pipelines. It can be equipped with cameras, inspection tools, and other accessories as needed.
Size:
630*225*210mm
Weight:
30Kg
Speed:
4km/h
Payload:
80kg
Description
Advantages:

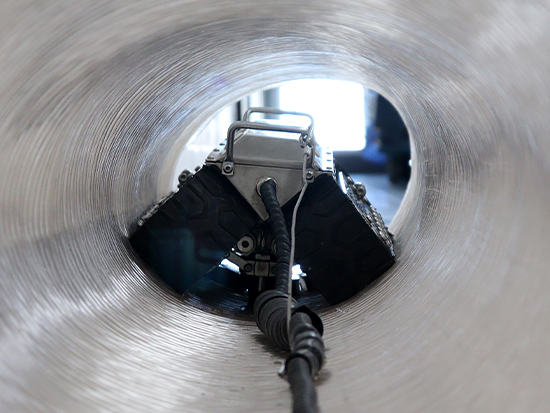

1. Compact size, fits small pipes (300mm diameter), and can enter urban tunnels via manholes.
2. 800W powerful drive motor.

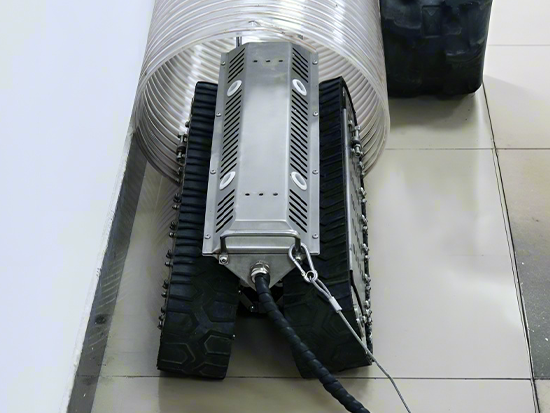

3. Tracks adjust automatically for round pipes, offering strong grip and drag for both square and round pipes.

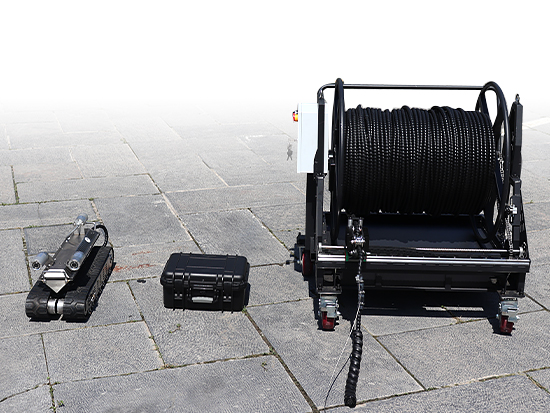

4. High-pressure drive with long cable control (standard 50m, max 600m), with an automatic cable winder for retracting/releasing the cables.
5. Multiple power system options: Battery (200AH), generator, or 380V AC power.

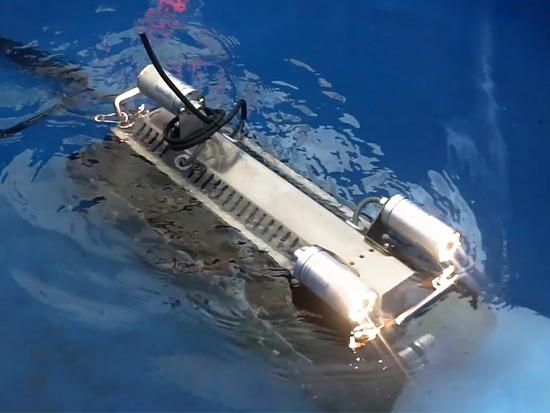

6. IP68 waterproof chassis and oil-sealing motors, suitable for underwater use up to 30m.
7. Optional: one-channel or four-channel remote control.

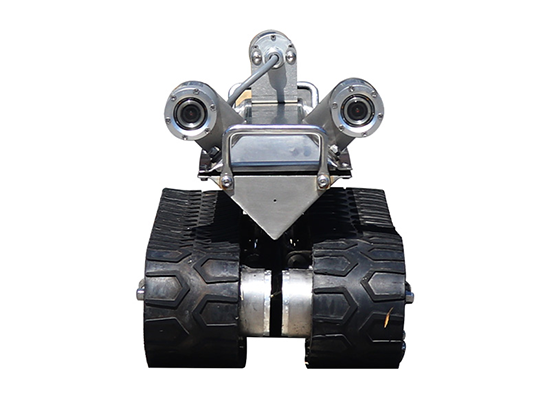

8. Optional: IP68 underwater camera for visual operation.
9. Can be equipped with cleaning tools like siphon mud pump, reamer, and high-pressure water gun to clear roots, garbage, and sediments in pipes.
Parameter
Name Data Name Data
Robot dimension 630*225*210mm Cable winder size 950*860*930mm
Load weight 80kg Travel speed 4km/h
Machine operating voltage DC48V Cable length 50m
(Can customize 600m)
Maximum operating power 400W*2 Maximum climbing grade 30°
Waterproof grade IP68 (50m, 150m, can be customized for 300m depth underwater) Maximum track span 485mm
Robot self-weight  30Kg Cable winder self-weight 130 Kg
Battery compartment dimension 741*427*148mm Track grounding length 485mm
Maximum span 160mm Obstacle crossing ability 65mm
