  • L16 Unmanned Robot Vehicle

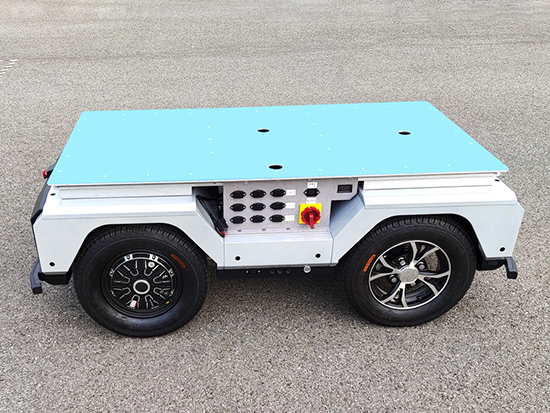

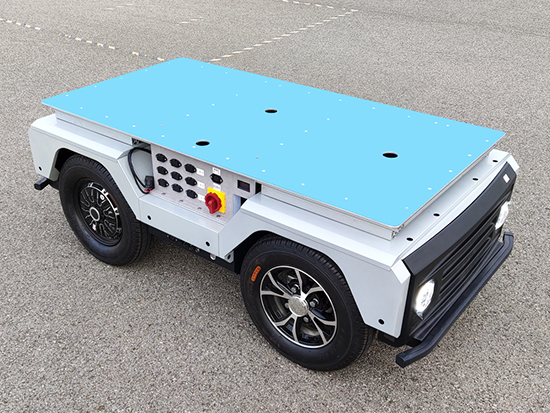

L16 Unmanned Robot Vehicle
The top of the L16 flatbed vehicle can support 200 kg based on the chassis. The table top measures 820 x 1385 mm in size.
Size :
1608*800*550mm
Load capacity :
200kg
Weight :
100kg
Drive mode:
Front Ackerman steering, rear hub motor drive
Description

Application:

1. Moving a car
2. Unattended vending machine
3. A robot for teaching
4. A food delivery robot

Features:
1. Independent development of VCU suitable for vehicles.
2. Ackerman's driving mechanism.  Rack and pinion electric steering system
3. A motor drive with two hubs.
4. Low layer flat strip design and lightweight aluminum alloy frame design.
5. Shock absorption of large loads and hidden air spring.
 6. A three-layer safety fault prevention mechanism to reduce the risk of melting.
7.800W High Power Hub Motor
 8. Train Level Driving Controller (MCU) control: fast, stable, and reliable response.
 9. A cable-drive bar control system at the railway level. (VCU)
 10. Electronic control lock architecture is more suitable for the needs of automatic driving.
 11. Intelligent body system, coordinating power output and reading parameters.
 12. Highly efficient hydraulic disk brake system.  Emergency braking has a brake range of less than 0.3 meters.
Parameter
Item Specification
Size 1608*800*550mm
Load capacity 200kg
Weight 100kg
Body plate size 1380*800mm
Wheel truck Front 686mm; Rear 692mm
Wheel base 900mm
Minimum ground clearance 132mm
Drive mode Front Ackerman steering, rear hub motor drive
Brake mode Hydraulic holding brake, anti-cracking brake
Front and rear suspension mode Hidden spring shock
Tire specifications 10inch diameter 400mm
Speed ≤5km/h(50km/h customized)
Endurance 45km(payload 100kg,uniform speed 5km/H)
Braking distance 10 OR 8KM/H
Turning radius 2.54m
Max. Climbing 20°
Obstacle clearance height 80mm
Security Touch stop bar, emergency brake button
Motor type In-wheel motor (permanent magnet)
Motor Power 800W*2
Battery 48V,10Ah can customize 20Ah
battery operating temperature -20°~60°
charger AC220V independent charger
Charging time 6 hours
External power supply 12V,can customize 5v
Protection class (waterproof, dustproof) IP35,Can customize IP66
Communication Interface CAN provides standard communication protocol
Move control VCU control
sensor type steering feedback sensor
Walking wheel speed sensor
Front and rear brake feedback sensors
