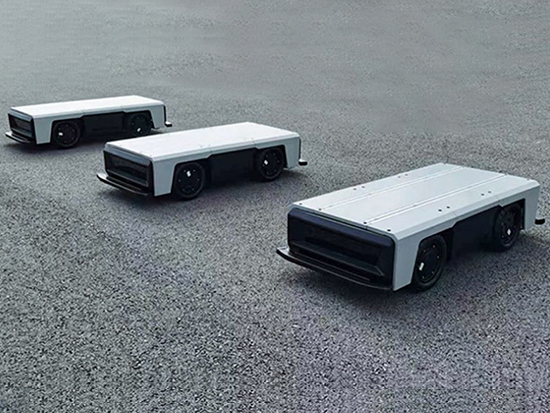

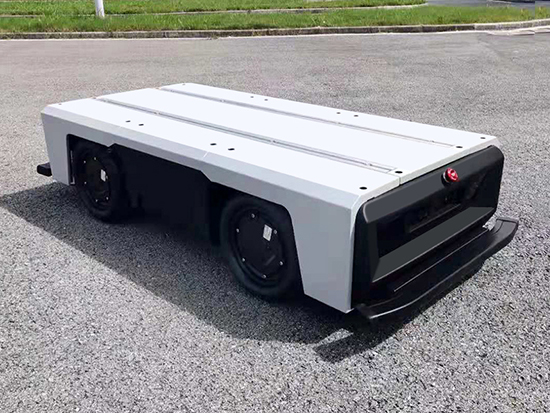

L13 Unmanned Robot Vehicle

Intelligent design, lightweight construction, and model ideas were used in the development of the L13 low-speed unmanned vehicle development platform.

Size :

1350*590*310mm

Load capacity ：

120kg

Weight ：

70kg

Drive mode ：

Front Ackerman steering (Customizable double turn, smaller steering radius)

SEND MESSAGE Get price on whatsapp

Description Parameter Related Products Inquiry

Description

Application:

1. Transport Vehicle
2. unattended vending machine
3. Teaching robot
4. Robotic food delivery

Features:
1. Driving accuracy: ±10mm. Repeat positioning accuracy, operating speed up to 5 m/s, and four-wheel drive and driving.
2. High-configured main hardware
3. High productivity, high performance, simple design, easy control.
4. MCU control response is stable, reliable, and fast.
5. Electronic controls are suitable for automatic driving requirements.
6. Analyze data, manage power generation, and use the intelligent body system.

Parameter

Dimension	1350590310mm
Payload	120kg
Weight	70kg
Drive mode	Front Ackerman steering (Customizable double turn, smaller steering radius)
Brake mode	anti-cracking brake
Front and rear suspension mode	Hidden spring shock
Tire size	260mm
Speed	≤5km/H(10km/h adjustable)
Endurance	45km
Braking distance	0.5m
Turning radius	1.75m
Climbing capacity	＜20°
Obstacle clearance height	50mm
Security	Touch stop bar, emergency brake button
armature
Generator style	Hub motor( Permanent magnet synchronous motor with encoder)
Motor	300W*2
Battery	48V/20Ah
Charger	AC 220V independent charger
Charge time	≤6h Fast charge can be customized
External power supply	12/48v (it can be customized)
Protection grade	IP35(It can be customized IP66)
other
Communication Protocol	Can Communication
motion controller	VCU control
Sensors	Steering feedback sensor Walking wheel speed sensor Front and rear brake feedback sensors
