  • RCV-150III Duct cleaning robot

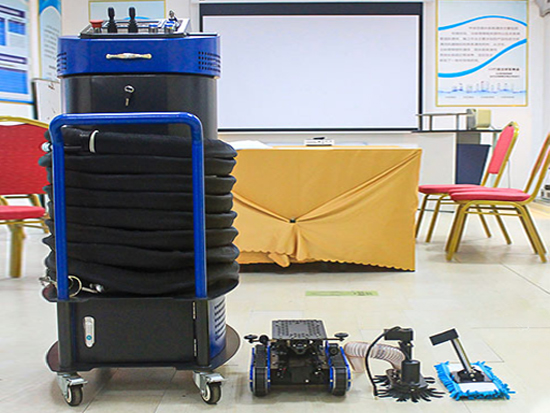

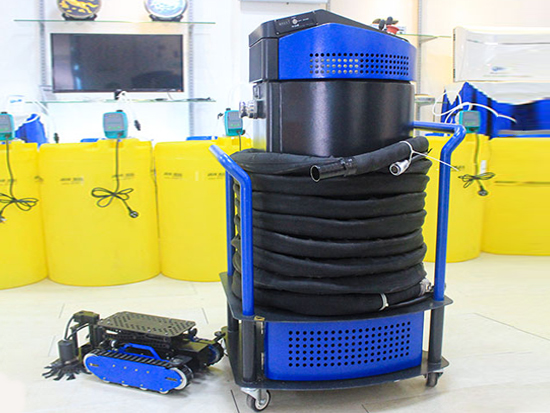

RCV-150III Duct cleaning robot
Four high-quality cameras on duct cleaning robotic equipment allow for thorough cleaning of pipelines with a height range of 200–550 mm.
Size :
400*300*180mm
Weight :
17.6KG
Speed :
11.12m / min
Max Power :
3000W
Description


Application

The PCS-150III ventilation duct cleaning equipment finds extensive usage in hotels, restaurants, hospitals, office buildings, and others for cleaning rectangular horizontal ducts without oil.

Features

1. 200–550 mm in the cleaning area height.
2. The brush automatically raises lowers and spins 360 degrees.
3. A 32GB memory card and four cameras for recording and taking pictures.
4. A self-suction brush for cleaning the bottom or  top duct and collecting dust
5. A strong crawler support, the capacity to climb up to 40 degrees, a 60 kg payload, and six motors.
6. Design featuring a 15-meter dust suction pipe, control box, and dust collector for duct cleaning.
Parameter
Speed 0-12m/min
Suction Pipe 20m
Grade Ability ≤40°
Power 70W
Load Capacity ≤150kg
Cleaning Efficiency ≤450㎡/h
Dimension 400*300*180mm
Weight 17.6kg

Control Box with Dust Collector
Vacuum Motor Power 3000W
Maximum Negative Pressure 20KPa
Working Voltage AC 220V
Controller Voltage DC 24V
