  • FA-10 Duct cleaning equipment
FA-10 Duct cleaning equipment
The primary use for the FA-10 HVAC duct cleaning machine is cleaning 100–500mm non-oily ducts.
Size :
500*370*290mm
Weight :
12.9kg(shaft not included)
Speed :
0-1500r/min
Power :
245W
Description

Machine for cleaning HVAC air ducts

HVAC air duct cleaning machine

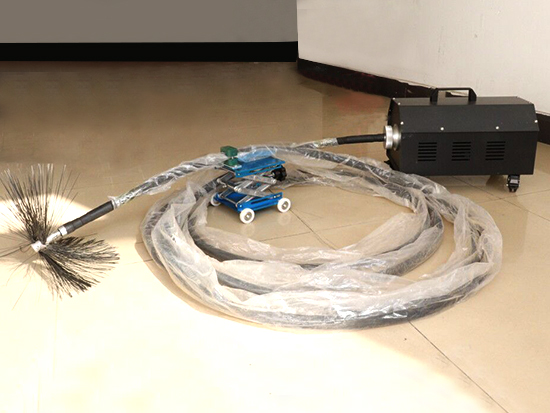

The HVAC flexible shaft pipe cleaning machine's compact size, portability, strong cleaning ability, and light weight are its advantages. The flexible shaft pipeline cleaning machine features a movable base that makes walking in the pipeline easier. Its height is adjustable, and it can be used to clean pipelines of different sizes.


Applications

It's mainly intended to clean small air ducts that have a diameter of less than 500 mm. The dirt in the pipeline rises under the power of the rotating brush and enters the dust collection device to achieve the cleaning goal.


Features

1. It is easy to use and lightweight.
2. The frictionless joint effectively reduces heat and shields the flexible shaft, giving it a unique design.
3. The flexible shaft can be cleaned more thoroughly by the 0–1500 rpm speed range.

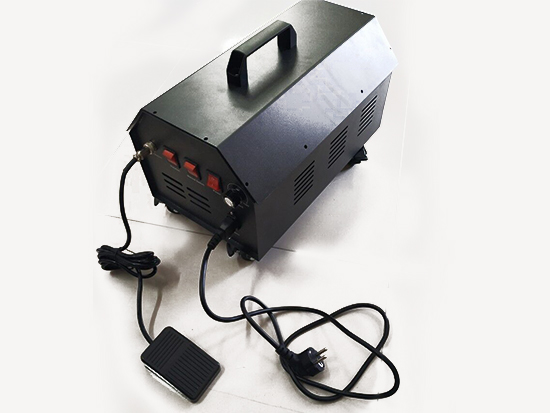

4. Working Mode: A foot switch controls both intermittent and continuous work.
5. Movement of the Brush Head: The brush head is fixed on the moveable base. It can adjust the shaft height, meanwhile reducing the moving resistance
6. Adaptable Shaft Bracket: For regular transportation and storage
7. The omnidirectional wheel is useful for running errands.

Parameter

Specification

Item Parameter Item Parameter
Model FA-10 Rotating speed 0-1500r/min
Voltage AC110V or 220V Dimension 390*250*310mm
Frequency 50/60Hz Cleaning Range 100-500mm
Power 245W Cleaning distance ≤20m
Weight 13kg(shaft not included) Shaft length 10m



Packing List

No. Item Spec. Qty. Note
1 Main machine FA-10 1 set
2 Brushes 150mm 1pc
3 250mm 1pc
4 350mm 1pc
5 450mm 1pc
6 500mm 1pc
7 Flexible shaft 10m 1pc
8 Foot Switch  CFS-01 1pc
9 Sliding Car (can lift up and down) 150*150*260 1pc
10 Power cord 1.5m   1pc
11 Operation Manual   1 book
12 Certificate of conformity   1pc
13 ID number   1pc
