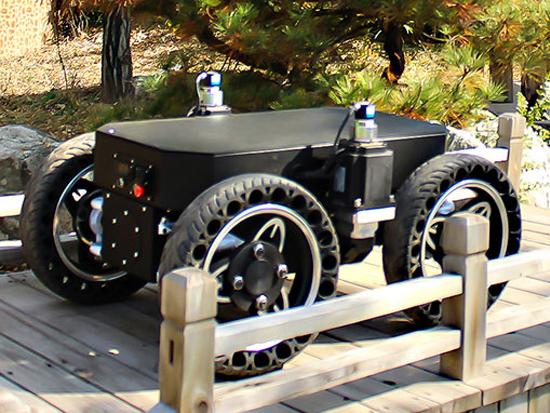

The 4-wheel smart robot chassis is equipped with non-inflatable, explosion-proof solid rubber tires. While these tires are heavier compared to pneumatic tires, they offer superior durability and are better suited for various usage scenarios. Although solid rubber tires may impact driving speed slightly, they provide enhanced support and passability, eliminating concerns about punctures or instability that could affect the vehicle's balance. Additionally, the 4-wheel robot platform features a super reduction ratio and differential steering gear, enhancing ease of use and maneuverability.
| Item | Data | Item | Data |
| Dimension | 955*690*400mm | Platform size | 764*405mm |
| Self weight | 139KG | Running speed | 5.5KM/H |
| Tyre type | Non-inflatable explosion-proof solid rubber tire | Ground clearance | 125±15mm |
| Body Material | Carbon steel/alloy steel plate/aluminum | Protection level | IP54 |
| Vibration reduction | Four-wheel independent suspension shock absorption | Surface treatment | Spray paint/plastic spray |
| Motor | 48v1500w*2 DC brushless | Design load | 125kg |
| Reduction ratio | 1:20 | Maximum climbing | 30° |
| Maximum obstacle | 100mm | Turning radius | Pivot steering |
