  • SL-20 Ground/ Amphibious Wheeled Robot Chassis
SL-20 Ground/ Amphibious Wheeled Robot Chassis
SL-20 ground/ amphibious all-terrain wheeled vehicle are very suitable for completing emergency rescue tasks in the wild, water, forests, swamps, narrow roads, city streets and areas with high rescue difficulties.
Speed :
On land: 20–40 km/h In water: 5–10 km/h
Gear Ratio :
1:10-1:25
Motor power :
(8-16KW)*2
Description

Introduction:

SL-20 ground/ amphibious all-terrain wheeled vehicle are very suitable for completing emergency rescue tasks in the wild, water, forests, swamps, narrow roads, city streets and areas with high rescue difficulties.


Application:

It can be widely applied in fields such as rescue robot, safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc.


Features:

1. It is a real all-terrain vehicle that can run on land and go off-road, and can also be used as a boat in the water. It can reach places that other vehicles cannot reach.
2. The unique 8-wheel drive design can be unimpeded on any muddy and bumpy road conditions, completely breaking the constraints of location and seasonality, making the scope of use wider.
3. Dual-power structure: It adopts eight-wheel drive and is equipped with dual pump injection power at the rear, and the two types of power can be freely switched and used simultaneously.
4. Spring shock absorption for enhanced impact resistance.
5. High/low beam switching control enables night driving and operation.
6. Autonomous driving and navigation modules are reserved around the vehicle body, which is specifically designed for beyond-visual-range autonomous driving.

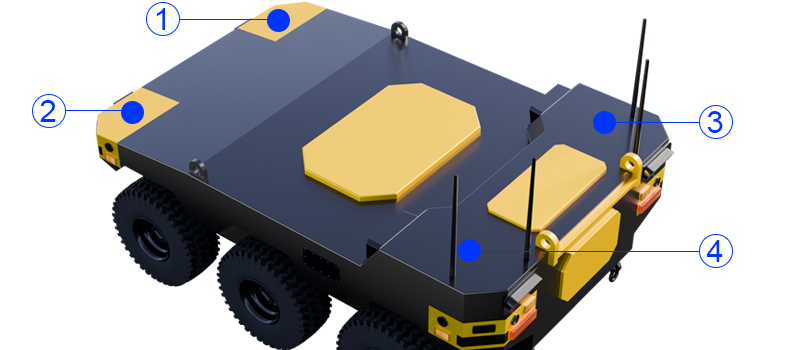

Reserved autonomous driving and navigation modules

A01
Handheld remote controller
Remote control distance 700-800m (open areas)
10 channels
Support data/video transmission
Standard
A01-V
Handheld remote controller with single video display
Remote control distance 700-800m
visual distance 400m (open areas)
Optional
A02
Control box with 4 screens
Remote control distance 500m
4 wired video signals, Optional PWM steering gear control signals (Max.13 signals)
Optional
