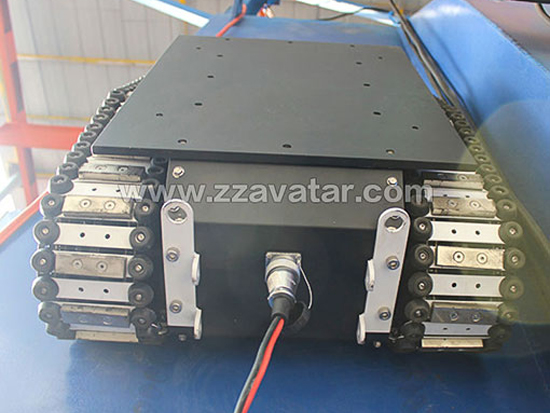

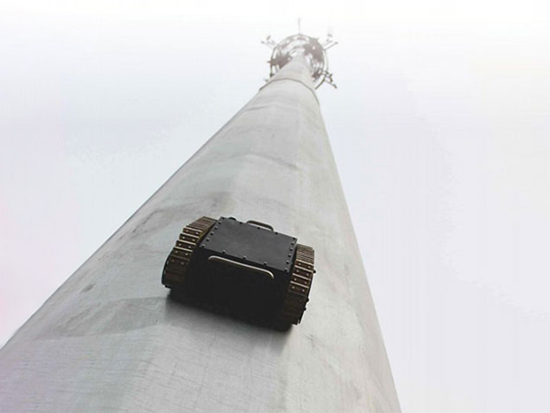

The CW-8 is specifically engineered for climbing iron walls and features two types of movement: crawler and wheel. It incorporates custom-developed technologies such as permanent magnet tracks, a bottom suction magnetic seat, and a dynamic pendulum permanent magnet climbing wall wheel.
The CW-8 is versatile in its applications, including:
1. Climbing Wall Cleaning: Effective for cleaning vertical surfaces.

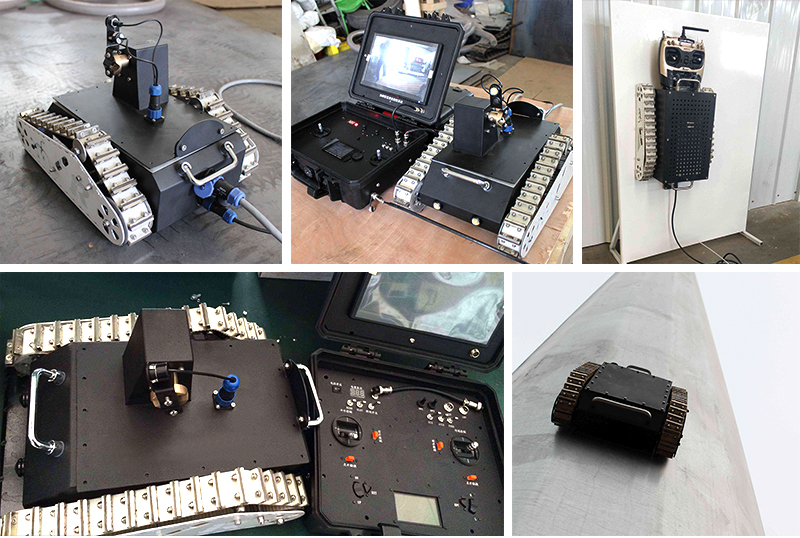

Wall climbing detection and rust removal robot
| Item | Data | Item | Data |
| Size | 895*616*280mm | Self Weight | 70kg |
| Loading Capacity | 40kg(vertical) | Waterproof | IP54 |
| Motor | 400w*2 | Motor Torque | 0.64NM |
| Speed | 0-0.16m/s | Driving Wheel Diameter | 133.61mm |
| Track Width | 120mm | Track Perimeter | 1.63m |
| Deceleration Ratio | 175 | Drive Shaft Torque | 191-200NM |
| Climbing Wall Angle | ≤90° | Climbing Wall Material | Magnetic Conductivity Material (iron) |
| Chassis Height | 17mm | Power Supply | 220V Cable Power Supply. (customized) |
| Track Ground Length | 65cm | Remote Control Distance | 300m Open Space |
| Body Material | 304 Stainless Steel | Tracking Material | Compound (Rubber Pad, Strong Magnetic Strip, 304 Stainless Steel Plate) |
