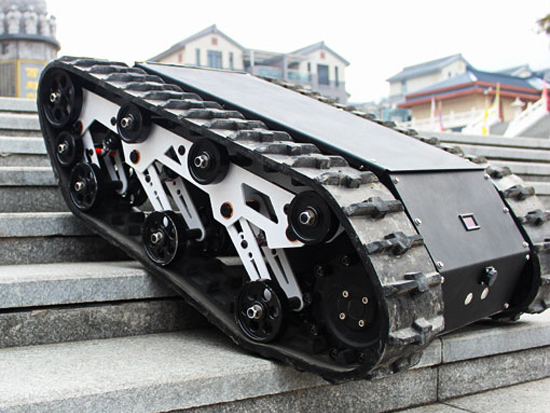

C9 Robot Chassis

The robot tank chassis is applied to various applications and has an effective transmission rate.

Size :

960 * 700 * 320mm

Speed:

0 ~ 6.5KM / H

Load capacity :

65KG

Weight:

120KG

SEND MESSAGE Get price on whatsapp

Description Parameter Related Products Inquiry

Description

Application of a customized robot chassis

1. Analyzing the inspection
2. The ambulance
3. Education and scientific research
4. Designed as fire fighting robot
5. Unique photography
6. Unique transportation

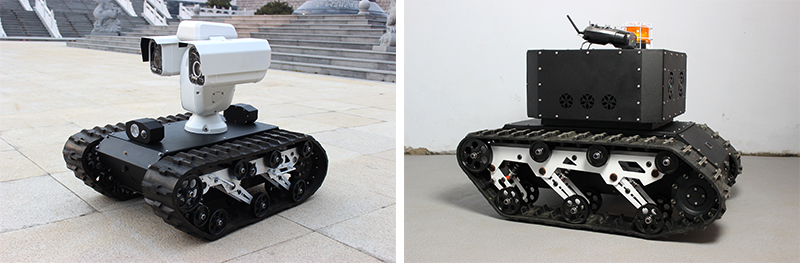

Inspection robot, exploration robot

Features

1. Self-contained suspension
2. A strong carriage
3. A strong motor and extended operation

Parameter

Item	Data	Item	Data
Dimension	960 * 700 * 330mm	Internal Size	300260230mm
Loading Capacity	65kg	Weight	120kg
Rated Power	785w*2	Track width	150mm
Motor	48V DC Brushless Motor	Reduction Ratio	1:15
Running Speed	0-6.5km/h	Ground Clearance	75mm
Climbing Ability	30°	Rated Torque	37.5Nm
Ditch Passing Ability	160mm	Vertical Spanning	150mm
Body Material	Stainless Steel 304 / Alloy	Suspension System	Independent * 6 Shock Absorption

Related Products

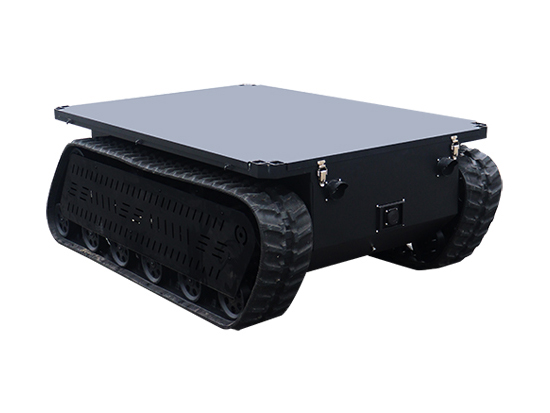

17E Robot Platform
