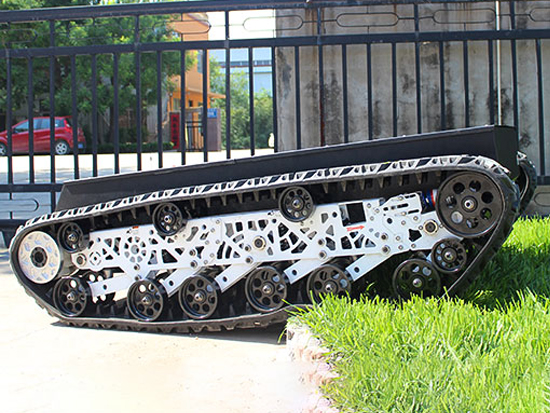

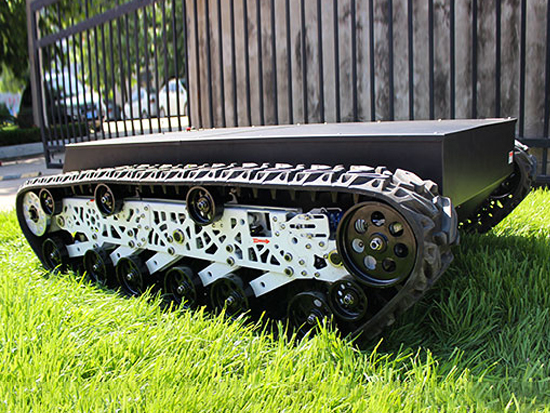

C18 Robot platform

Description Parameter Related Products Inquiry

Description

Application
1. Inspection
2. The ambulance
3. Education and scientific research
4. Designed as fire fighting robot
5. Exclusive photography
6. Special transportation

Robot development chassis application

1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport

Parameter

Self Weight	450kg	Dimension	18501300600mm
Max. Loading Capacity	500kg	Inner Space	650800350mm
Ground Clearance	190mm	Speed	0-3.2km/h
IP Grade	IP54	Max. Span	800mm
Climbing Capacity	30°( can climb stairs)	Track Width	200mm
Max. Obstacle crossing	320mm	Track Material	Rubber (Kovlar Embedded )
Surface Treatment	Black Spray (Matte)	Drive Wheel Diameter	190mm
Rated Torque	2*285NM	Transmission Ratio	1:30
Suspension System	Christie * 12 Shock Absorption	Body Material	304 Stainless Steel / Alloy Steel / Aluminum / Polymer Materials

Voltage	DC48V	Electric Motor	DC Brushless Motor
Max. Power	3000w*2	Standby Power Consumption	≤50w
Brake Type (Optional)	Electric Brake	Braking Voltage	DC48V
Encoder (Optional)	1000-2500TVL	Driver Model	6050
Control Distance	Open Space300mm	Number of Remote Control Channels	9T(Used 3T)
