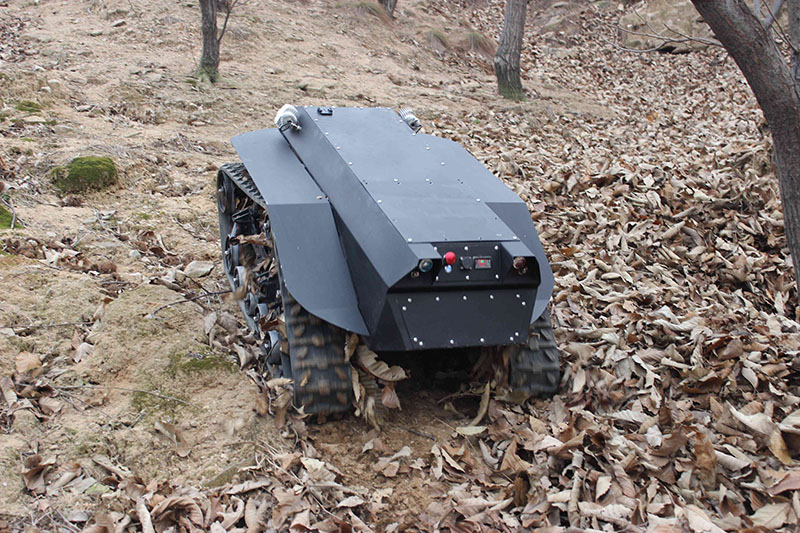

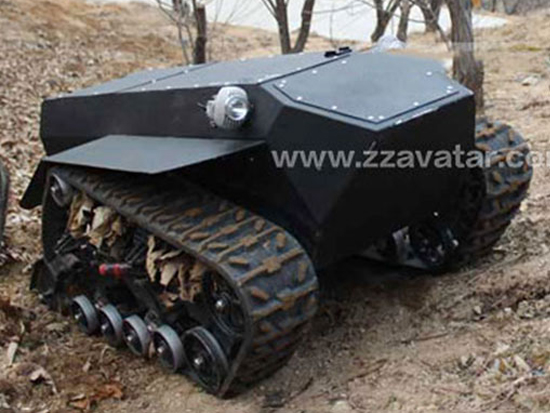

Innovative crawler , and more stable operation, the crawler robot chassis uses Christie + Matilda four-wheeled balance suspension. To be used in various situations, the chassis can be fitted with lighting, robotic arms, cameras, and other accessories. When a tracked robot platform has lights, it can be utilized routinely at night or in dimly lit areas.

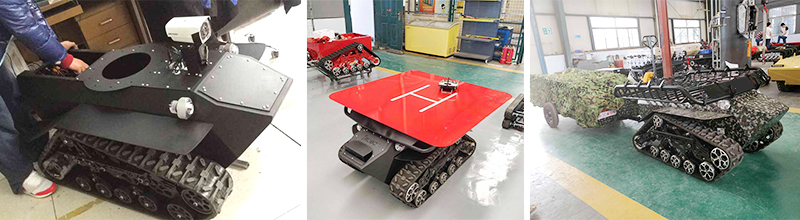

Inspection robot, transfer platform robot, logistics chassis
Features
1. Outstanding traffic capacity with 200 mm of ground clearance. 2. A shock absorption design with ten groups ensures steady movement on uneven terrain. 3. The design of the self-tensioning inducer wheel ensures optimal track tightness on time.
Parameter
Item
Data
Item
Data
Size
1416*800*544mm
Inner Space
460*360*345mm
Chassis Self Weight
150KG
Running Speed
0--7.5km/h
Ground Clearance
180mm
IP Grade
IP64
Maximum Span
400mm
Load Weight
150KG
Max. Angle of Climbing

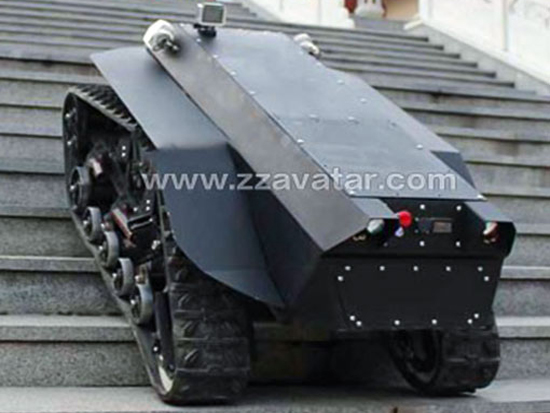

30o (able to climb stairs)
Vertical Cross
180mm
Track Material
Quality rubber embedded with Kovlar fiber
Body Material
304 Stainless Steel/ Alloy Steel Plate/Aluminum/Polymer Material
