Application:
TC8 serves as a versatile platform, capable of accommodating various equipment like cameras and water guns. It is widely employed in sectors like patrol inspection, collaborative transport, municipal services, firefighting, and many other industries.

Features:

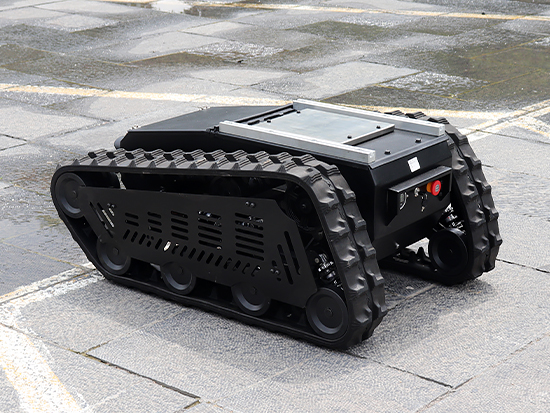

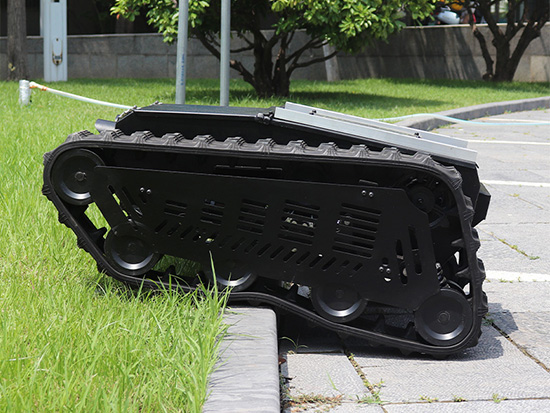

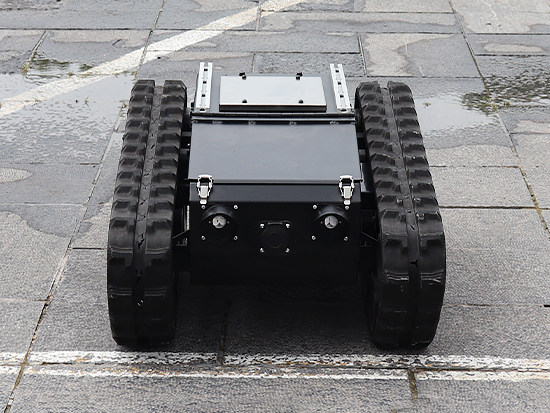

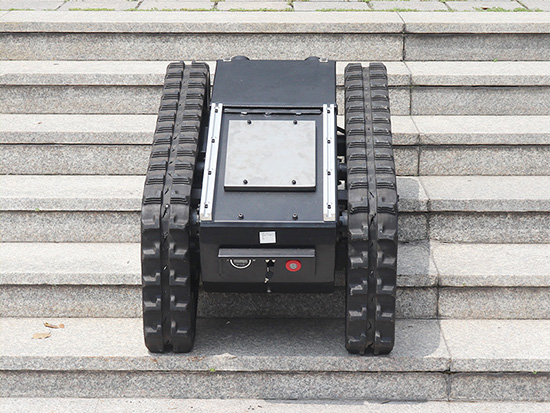

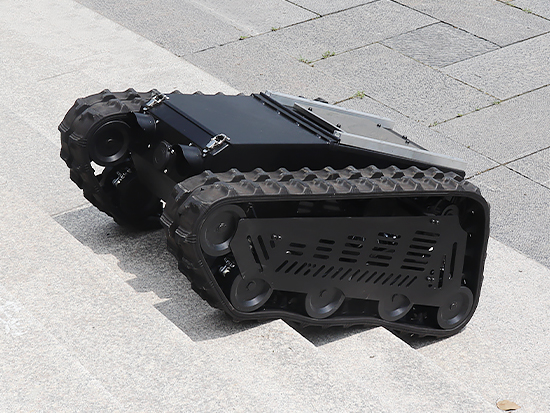

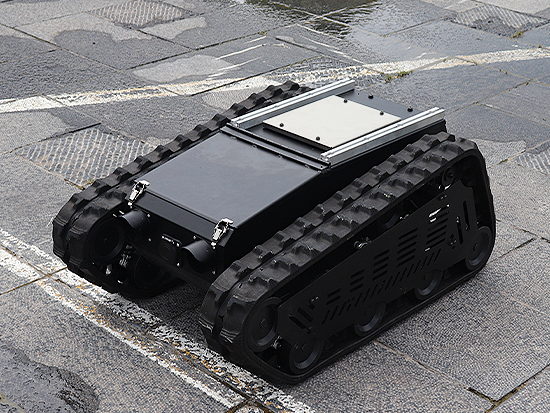

1. Chassis Design: The chassis features a diamond-shaped track structure, offering a 150mm ground clearance for superior crossing ability. With its long track contact area, the platform excels in climbing stairs and maneuvering across challenging outdoor terrains. The tracks fully enclose the vehicle body at both ends, offering added protection and enabling it to navigate a wide variety of surfaces.
2. Protection Level: Rated with an IP65 protection level, ensuring it’s resistant to dust and water ingress.
3. Communication Protocols: Supports 485 communication and CAN protocols, facilitating reliable data exchange and control.
4. Drive System: Powered by a DC brushless Hall motor or servo motor with an encoder, the system features a closed-loop control mechanism for precise steering, speed, and stroke adjustments. It offers the ability to rotate in place or move in a spiral, as needed.
5. Safety Features: Equipped with multiple safety protections, including overvoltage, overcurrent, undervoltage, overheating, and short circuit safeguards.
6. Control Methods: Offers several control options: joystick, standard aircraft-style remote control, or upper computer command. The system includes a speed loop, displacement loop, and differential loop, allowing for fine-tuned speed regulation and maneuverability.
7. Rubber Tracks: The tracks provide excellent traction and have an extended grounding area for enhanced stability and performance.
8. Adjustable Tensioning Wheel: Ensures the tracks maintain optimal tension for smooth operation and durability.
9. Wide Applications: The TC8 is extensively used for safety monitoring, explosive ordnance disposal (EOD) tasks, robotic arm installations, camera mounts, and lifting platform operations, among others.
10. Battery: Equipped with a lithium iron phosphate battery, offering high working voltage, energy density, long lifespan, and excellent safety performance. It also has a low self-discharge rate and is free from memory effect.

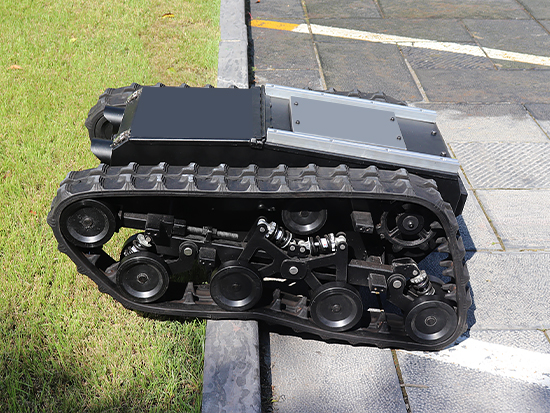

11. Shock Absorption System: Incorporates a Matilda suspension combined with Christie shock absorption technology, delivering exceptional shock resistance during operations.
12. Night Operations: Features high and low beam switching for effective operation in low-light conditions, ensuring it can function in the dark.
13. Customization and Development: Offers flexibility for customization and secondary development to meet specific operational needs.

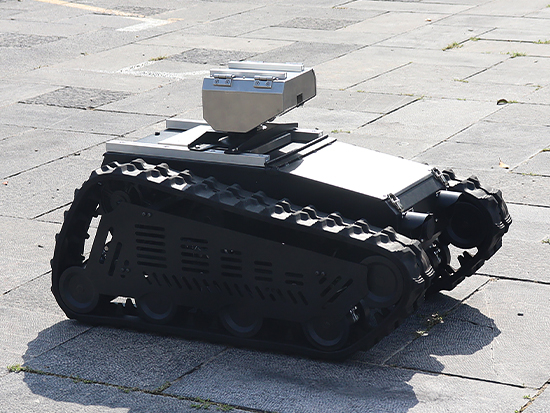

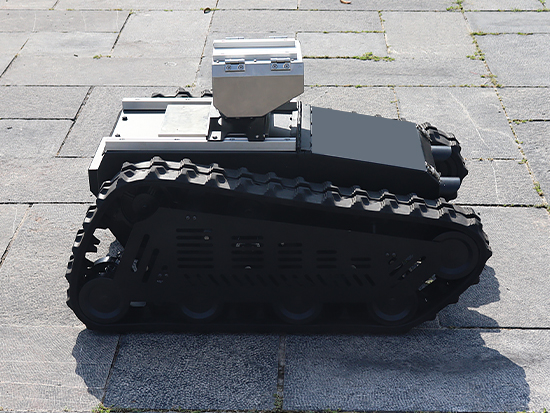

14. Optional Pan/Tilt Mechanism: A powerful dual-degree-of-freedom Pan/Tilt system is available with the following specifications:
Horizontal torque: 100NM, speed: 180°/s
Vertical torque: 100NM, speed: 180°/s or 50NM with speed 360°/s.
